YOUR ENVIRONMENT
SSD / HDD Cache
Customer-provided or Savartus-configured performance storage provides fast access for active and frequently used information.
RACK MOUNT OPTICAL STORAGE
ELS300
A dedicated optical tier for Active Archive.

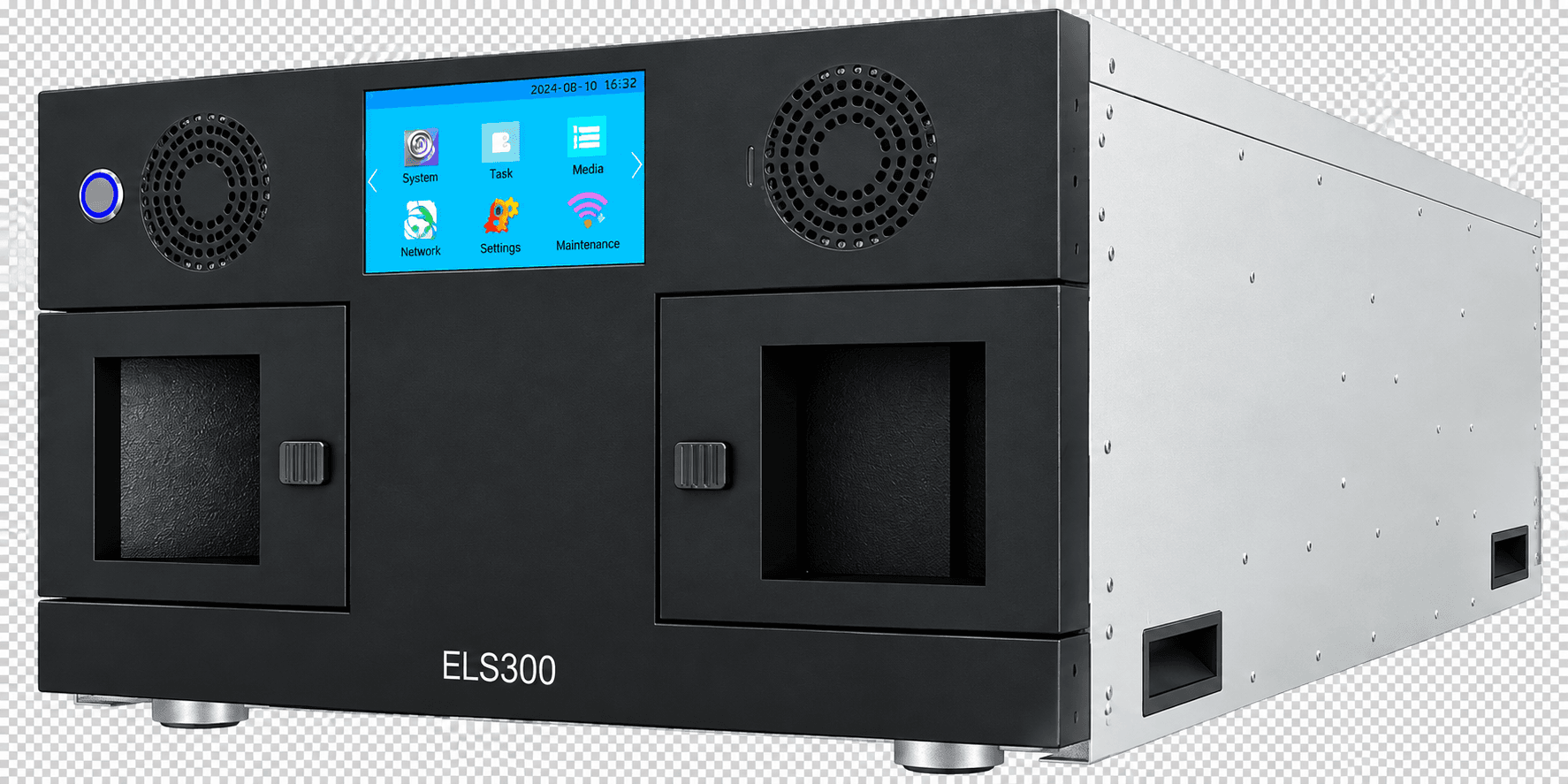

The Savartus ELS300 is a rack-mounted optical storage system designed to work with a separate SSD/HDD performance tier. It connects through standard S3 and provides write-once optical preservation in a compact 7U form factor.
CAPACITY28.8 TB
MEDIA288
OPTICAL DRIVESUp to 4
FORM FACTOR7U Rack
SYSTEM ARCHITECTURE
Separate performance from preservation.
The ELS300 does not include a cache server. Instead, it integrates with the existing or separately configured performance tier, allowing SSD/HDD capacity and optical preservation capacity to be sized independently.
→
STANDARD S3
Network Integration
Applications and the performance tier connect to the ELS300 through a standards-based object-storage interface.
→
ONLINE PRESERVATION
ELS300 Optical
Integrated robotics and write-once optical media provide durable online preservation and retrieval.
TECHNICAL SPECIFICATIONS
ELS300
at a glance.
Form factor
7U rack-mountable, standard 19-inch rack
Optical media
Up to 288 discs
Disc capacity
Up to 100 GB per disc
Maximum optical capacity
28.8 TB
Optical drives
Up to 4 Blu-ray drives
Concurrent optical throughput
80 MB/s
Performance storage
Not included — separate cache/performance tier
Optical redundancy
Optical RAID 11+1
External interfaces
Gigabit LAN, SAS expansion support, standard S3
Power consumption
550 W maximum
BUILT FOR LONG-LIVED DATA
Preservation for enterprise workloads.
The ELS300 is designed for organizations that need long-term, tamper-resistant preservation while keeping storage architecture modular and standards-based.
